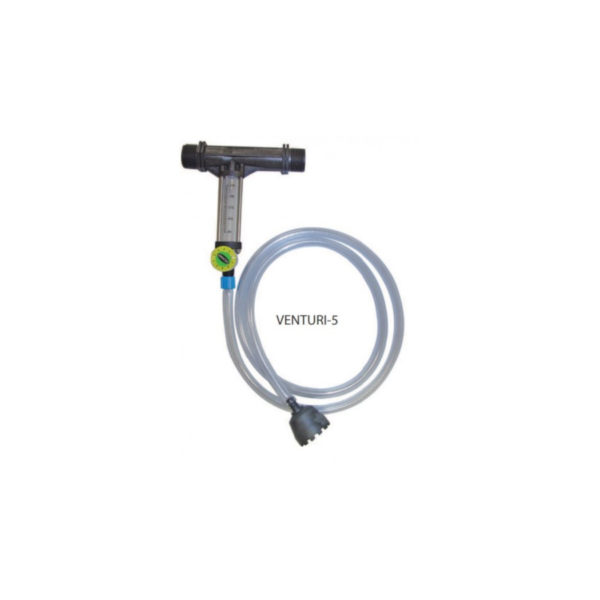

Venturi Injectors with Built-in Flow Meter & Suction Kit

Application Used to inject soluble or liquid fertilizer in greenhouse and landscape watering systems (Check local codes for backflow prevention laws).   Features Kit includes: Venturi Built in sight glass flow indicator Control valve to throttleamount of fertilizer 1m of suction tube Screen   Specifications Body – Polypropylene for resistance to acids and other chemicals. Maximum working pressure 785kPa Minimum working pressure on pressurized systems must be 98kPa. When using on by pass pressure di!erential between the inlet and outlet must be at least 70kPa. Venturi should always be installed on level plain. These injectors should not be used from a town mains supply.
