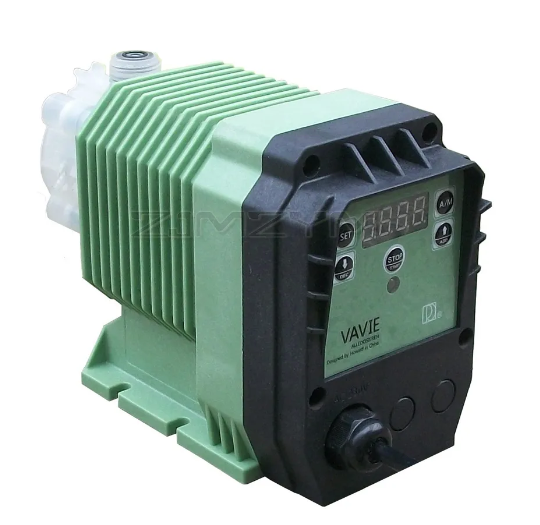

Fertigation Dosing Pump – Electromagnetic 230v 3.6L/hr or 19.2L/hr

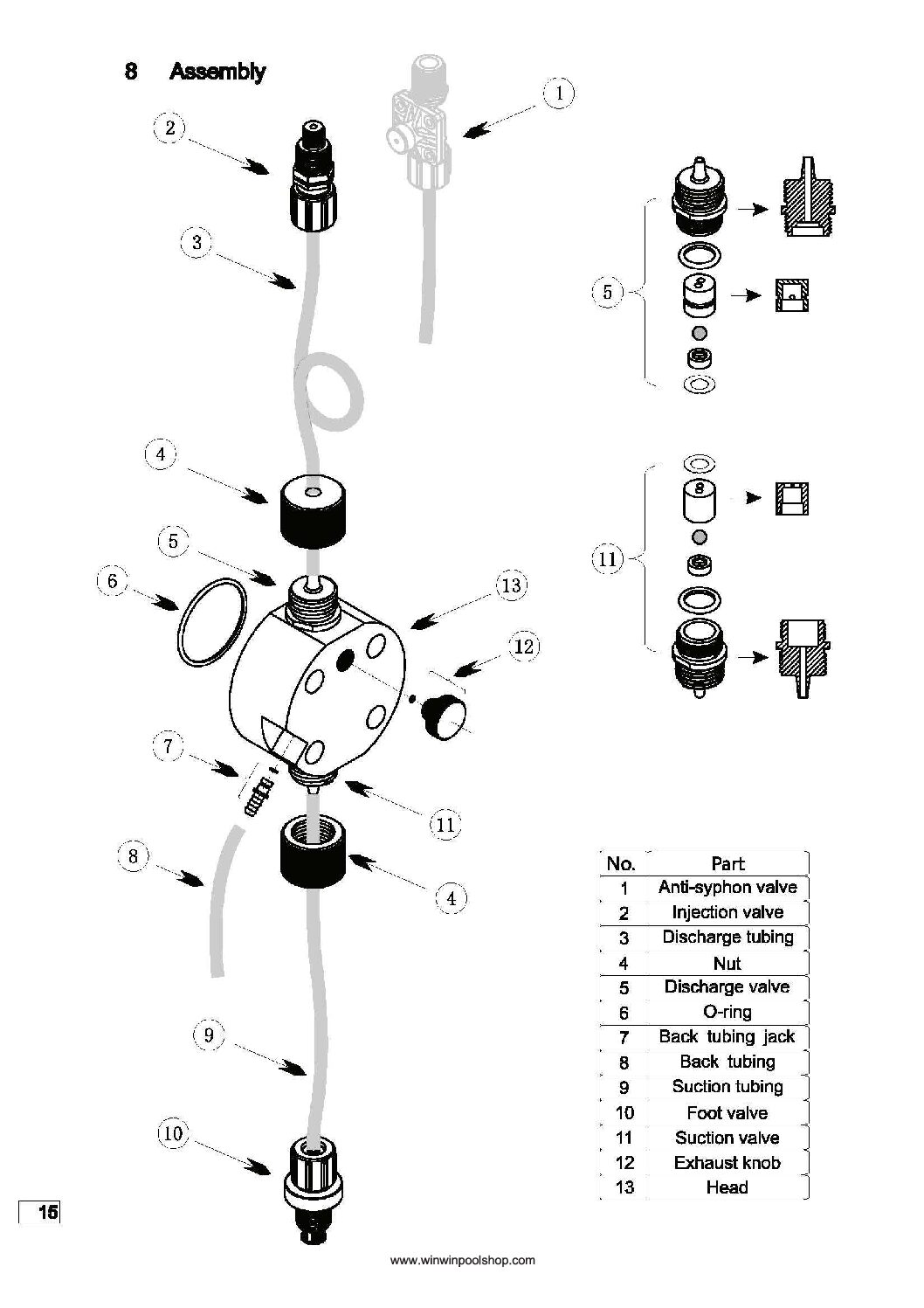

The dosing pump uses a diaphragm on a fixed stroke length, variable stroke frequency driven by electromagnets. The electromagnetic force to drive the diaphragm motion in the pump and the pressure variation caused by the suction valve and discharge valve automatically open and close to produce the dosing flow. Fertigation Dosing Pump  Voltage: 230V Flow rate: 3.6 L/H Hose: 4x6mm Connection: 1/2″ Pump Includes: Electric Diaphragm Metering Pump *1 Injection valve*1: PP G1/2” Filter bottom valve*1: PP G1/2″ Outlet pipe*1: 3.2m 6×4 PE white Inlet pipe *1: 1.6 meters 6×4 PVC transparent Liquid return pipe*1: 0.8m 6×4 PVC transparent Parameters: Repeated accuracy: -3% ~ 3% Ambient temperature: 5~42°C (indoor or outdoor in shade) Chemicals temperature: 5~42°C (polypropylene head) Chemicals viscosity: ≤300mPa s Particle diameter: ≤0.15mm Voltage: AC 220V    50/60Hz    -10~ 15% 12 W Series: Model Number : NT03008PH1A6000 N Series – Cycle Timer – 3 lph – 7.8 bar – PH – EPDM -None Contact – 6mm Tubing – No Valve Spring – Standard Accessories Note: Not for use in stock water systems.
