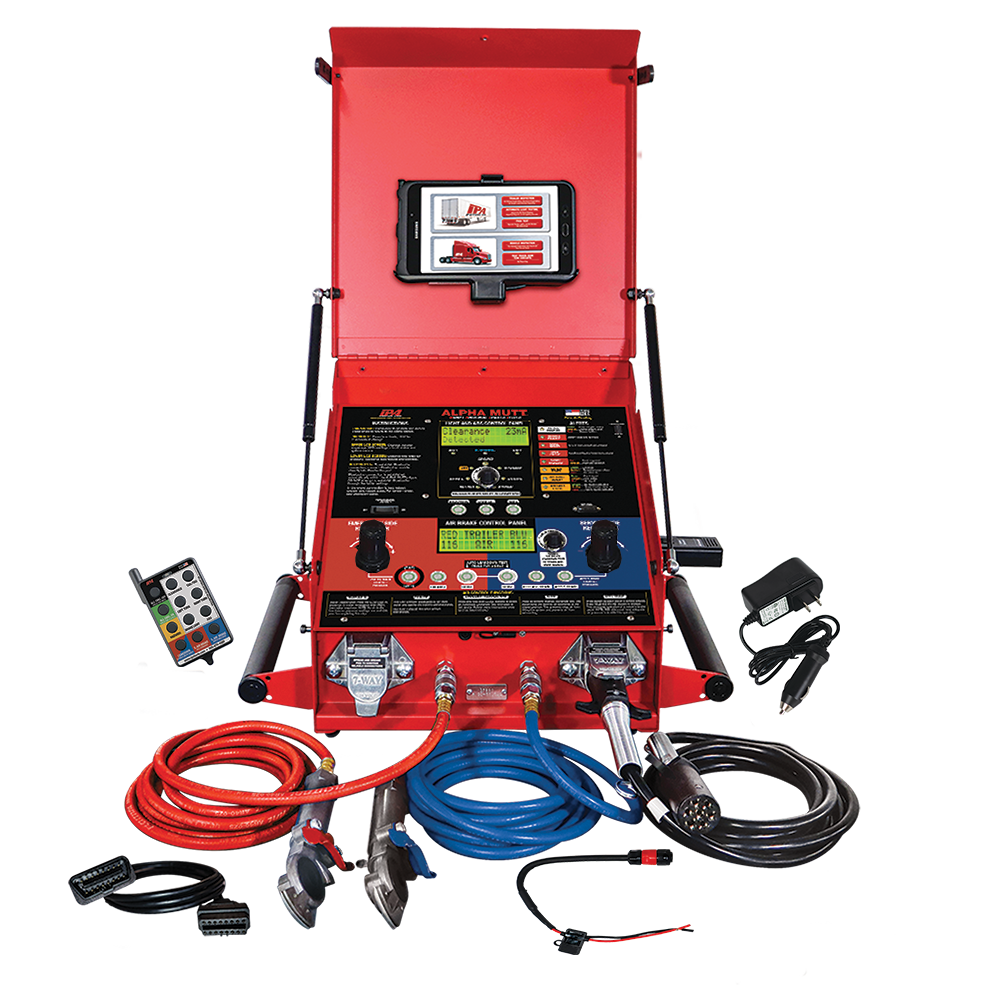

Description One-Man, Battery-Powered Trailer Inspection System that Tests a Trailer Without a Truck! Integrate all aspects of trailer service and repair with this easy-to-use trailer tester with advanced ABS, lights and digital air brake diagnostics. It includes an internal lithium battery and requires no set-up or monthly fees. #5510A-RT8 Available Without Lithium Battery – $6295.00 Features and Benefits: ABS TESTING Reads and clears codes on front panel or rugged tablet Accesses ECU data; manufacturer, make, model, etc. Displays diagnostic troubleshooting information Automatically detects corroded ABS wires and faulty ECU’s with patent-pending technology No lag time when accessing ABS with IPA®’s custom diagnostic software ELECTRICAL TESTING(12/24 Volt Operation) Automatic cross, open, overload, short and ground fault detection Highly accurate digital ammeter with 1mA resolution Pulsar Mode allows for chasing down short circuits without blowing fuses Ground failure detection: differentiates between wire and chassis ground Cable testing Control lights by remote or rugged tablet Detailed inspection report generated from auto-test report function in under 60 seconds AIR BRAKE TESTING Dual regulators Rugged tablet or remote-controlled air brake activation Real-time, repetitive brake activation to find developing problems and verify leaking servo cans Perform analog leak-down tests in service and emergency lines TRUCK-SIDE TESTING Tests continuity to trailer connectors of tractor Tests air brake output at tractor gladhands Environmentally Safe, Long-Lasting and Stronger Battery LiFePO4 batteries are superior to other lithium and lead acid batteries Lithium iron phosphate composition is non-toxic and naturally non-combustible Lighter and safer than standard lithium ion batteries Stronger charge efficiency and greater discharge capabilities Longer lifespan – get more inspections out of one charge No memory effect – will not lose charge longevity over time Withstands extreme temperatures (-4°F-165°F) with a peak reach of 930°F Built for Any Shop or Service-Truck Need Waterproof and sealed face label with illuminated stainless steel pushbutton switches Two dual-line, 32-character, sealed LCD screens optimized for outdoor use with backlighting for nighttime, sunlight-readable for daytime, and wide-angle view Tri-mount handle design for use in the shop, field or on the road Carry handle option allows transportability of unit – carry it anywhere you go Bottom-mount option lets unit be secured to a cart for mobility in the shop, or installed into truck box Back-mount option provides a secure, stationary unit when hung on a wall, in a truck box, or at the back of the shop work bench IPA®’s Diagnostic Software Suite IPA®’s diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points. CAPTURE INSPECTION REPORTS Inspection accountability Customizable, password-protected user login Technician’s username is recorded with each test Trailer VIN entry with each inspection maintains more accurate record keeping PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values Provides real-time data and control Records multiple data points for each circuit including wattage, voltage and current Reads accurate current from 0-21A @ 1mA resolution RECORD AND ANALYZE INSPECTIONS RESULTS Logs detailed pass/fail inspection reports Easily accessible report history allows technicians to analyze patterns for predictable failure points across all fleet service operations Upgradeable cloud-based option syncs an unlimited number of service locations with a central hub Email, print or export reports to PDF or XLS formats MILITARY-GRADE TABLET TESTED AGAINST: Salt Fog, Settling and Blowing Dust, Icing, Rain, Humidity, Immersion, Vibration, Dropping, High/Low Temperatures, and High Altitude Includes: 8″ Rugged Tablet • 2nd Gen 12-Button Remote Control • Bluetooth® Communication Module • 5’ Bluetooth® Extension Cable • 12′ Gladhand Hoses with Handles • 12′ 7-Way Cable • Power Cable • 500mA Battery Charger • Expanded Training Manual and Parts List Binder
